Product Details
The AeroQor® Isolated PFC Module is a high efficiency, active PFC, AC-DC converter designed to be used as a COTS Component in airborne applications. It operates from a universal AC input and generates an isolated DC output. Regulated output and droop output modules are available. Used in conjunction with a hold-up capacitor, and SynQor’s AC line filter, the AeroQor module will draw a nearly perfect sinusoidal current (PF>0.99) from a single phase AC input. The module is designed with a high level of documentation and traceability.
Operational Features
- Isolated output, 100 W, 325 W, 600 W & 800 W output power
- Universal input frequency range: 47 – 63 Hz / 360 – 800 Hz
- Input voltage range: 85-264 Vrms
- ≥0.99 Power Factor
- Internal inrush current limit. Full-brick model has enhanced control that keeps inrush current to nearly zero.
- Auxiliary bias supply
- Can be paralleled (droop version only)
- Compatible with SynQor’s AeroQor AC line filters
- Hold-up available on 600 W FG model only
Specification Compliance Features
- RTCA/DO-160
- Airbus ABD0100.1.8
- Boeing 787B3-0147
- Boeing D6-36440
- Boeing D6-44588
- CE marked
Control Features
- PFC Enable
- AC and DC Power Good outputs
- Input current limit and auto-recovery short circuit protection
- Auto-recovery input under / over-voltage protection
- Auto-recovery output over-voltage protection
- Auto-recovery thermal shutdown

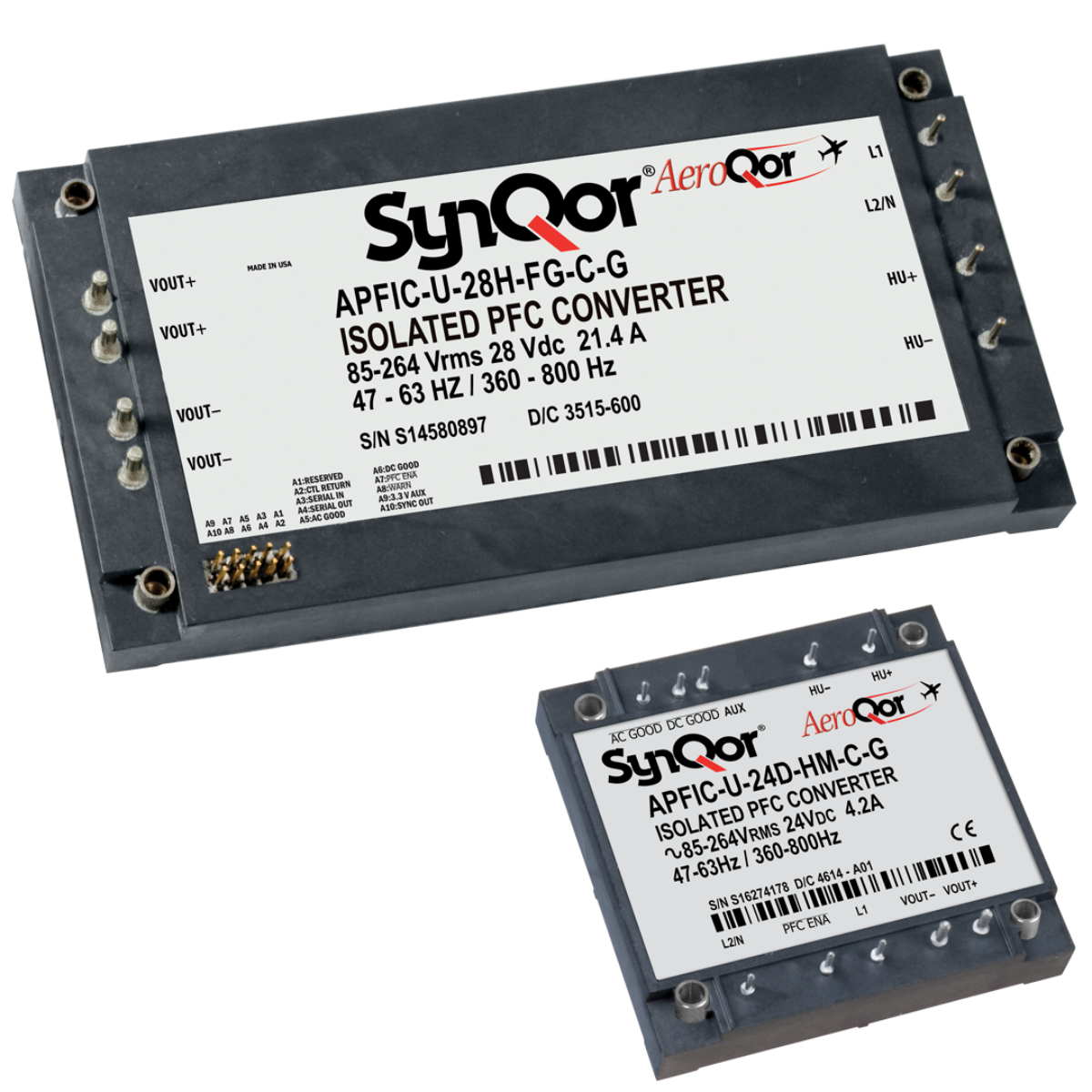

Single Phase AeroQor Family
115 / 230 V
Continuous Input
-
Transient Input
Up to 92%
Efficiency
-40 - +100 ºC
Operating Temp
