Product Details
The RailQor ® converter series is composed of next-generation, board-mountable, isolated, fixed switching frequency DC-DC converters that use synchronous rectification to achieve extremely high power conversion efficiency, even at low output power levels. The Quarter-brick 25 W-50 W Mega Series has power dissipation so low that no heatsink is necessary to operate at 85 °C in an enclosed environment without airflow. Each module is supplied completely encased to provide protection from the harsh environments seen in many industrial and transportation applications.
Operational Features
- Quarter-brick 25-50 W Mega Series has no derating in environments with zero airflow and ambient temperatures up to 85 °C with no heatsink
- Input voltage ranges meet the requirements of EN 50155
- Fixed frequency switching, low output noise
- No minimum load requirement
- Encased module to provide protection from harsh environments and available with optional flanged style baseplate.
- Industry standard pin-out configurations and standard footprints
- Output Voltage Set Point: ±1.0%
- Output Voltage Ripple: <1% of Vout (typ.) pk-pk
- Switching Frequency 240 – 350 kHz
- Output Voltage Trim Range: +10% to -20%
- Input-to-Output Isolation: Up to 2,000 Vrms
Specification Compliance Features
- EN50155 Compliance
- RIA 12 Compliance with external circuit
Control Features
- Input under-voltage lockout
- Output current limit and short circuit protection
- Active back bias limit prevents damage to converter
- Output over-voltage protection
- Thermal shutdown

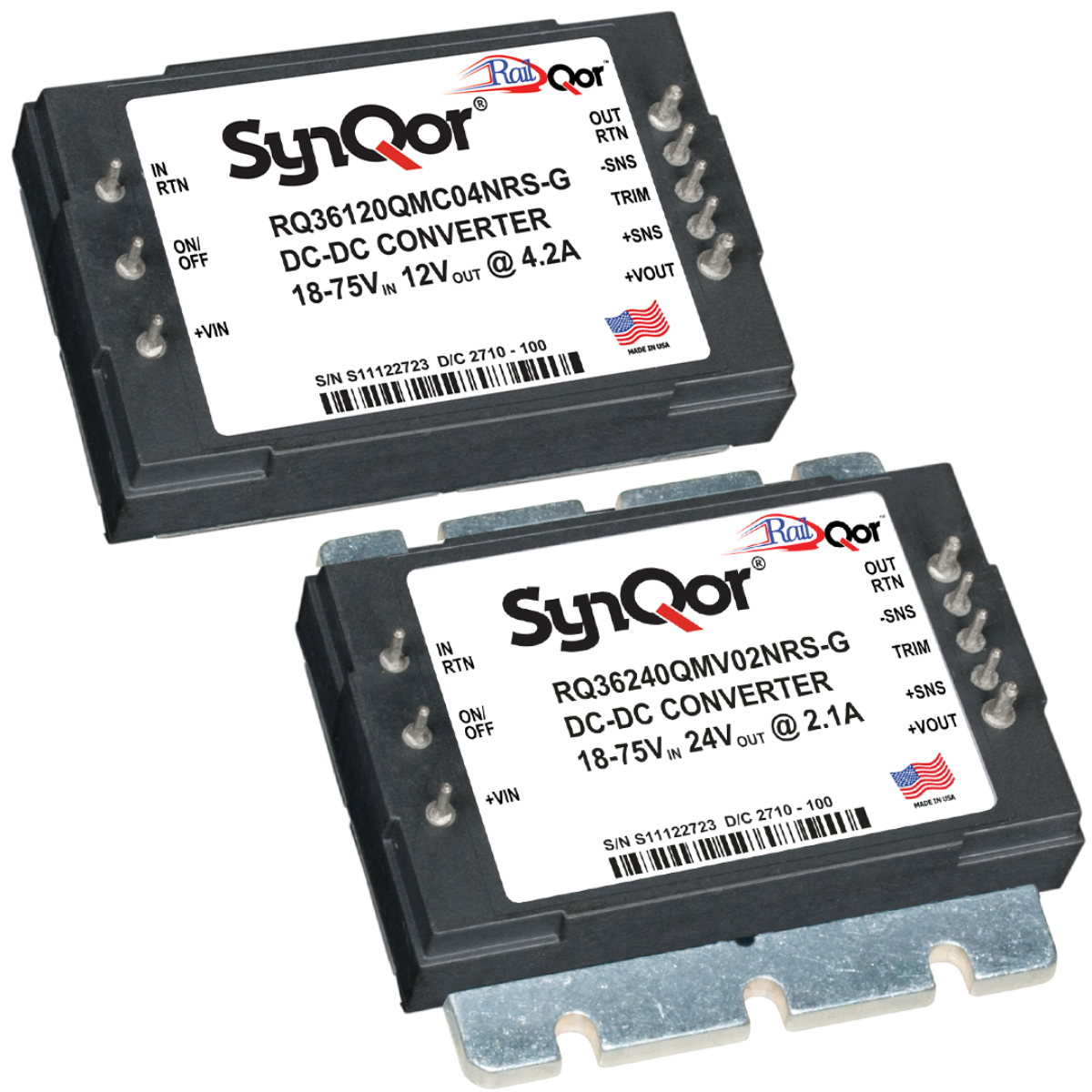

RQ36 Family
18 - 75 V
Continuous Input
18 - 80 V
Transient Input
Up to 93%
Efficiency
-40 - +100 ºC
Operating Temp
