Product Details
The PFCQor® Power Factor Correction module is an essential building block of an AC-DC power supply. Used in conjunction with a hold-up capacitor, SynQor’s high efficiency DC-DC converters and SynQor’s AC line filter, the PFCQor will draw a nearly perfect sinusoidal current (PF>0.99) from a single phase AC input. Up to three PFCQor modules can be paralleled to achieve higher power. The module is supplied completely encased to provide protection from the harsh conditions seen in many industrial and transportation environments.
Operational Features
- Universal input voltage range: 85-264 Vrms
- Universal input frequency range: 47 – 63 Hz / 360 – 800 Hz
- ≥0.99 Power Factor
- Internal inrush current limit
- Auxiliary 10 V bias supply
- 100 °C max baseplate temperature at full power
- Up to three modules can be paralleled with
current sharing
- Compatible with SynQor IQ4H Converters and
AC line filters
Control Features
- PFC Enable
- Load Enable (also: Power Out Good signal)
- AC Power Good Signal (HB only)
- Clock synchronization (HB only)
- Output current monitor / active current sharing (HB only)
- Input current limit along with auto-recovery short circuit protection
- Auto-recovery input under / over-voltage protection
- Auto-recovery output over-voltage protection
- Auto-recovery thermal shutdown
- -40 °C to +100 °C Operating Temperature

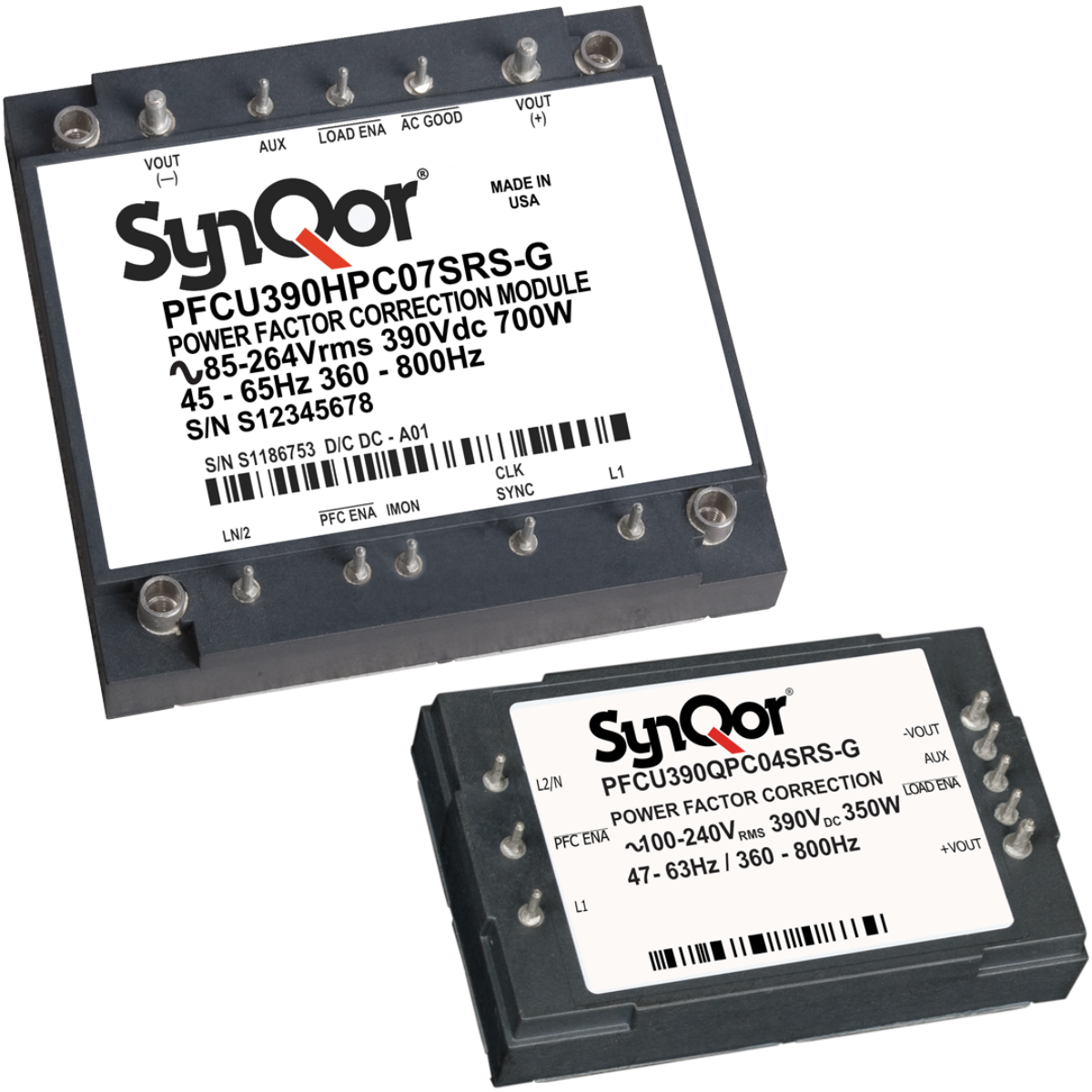

PFCQor Family
115 / 230 V
Continuous Input
-
Transient Input
Up to 96%
Efficiency
-40 - +100 ºC
Operating Temp
