Military Isolated Single Phase AC-DC Converters with PFC

See all products in this series

Product Details

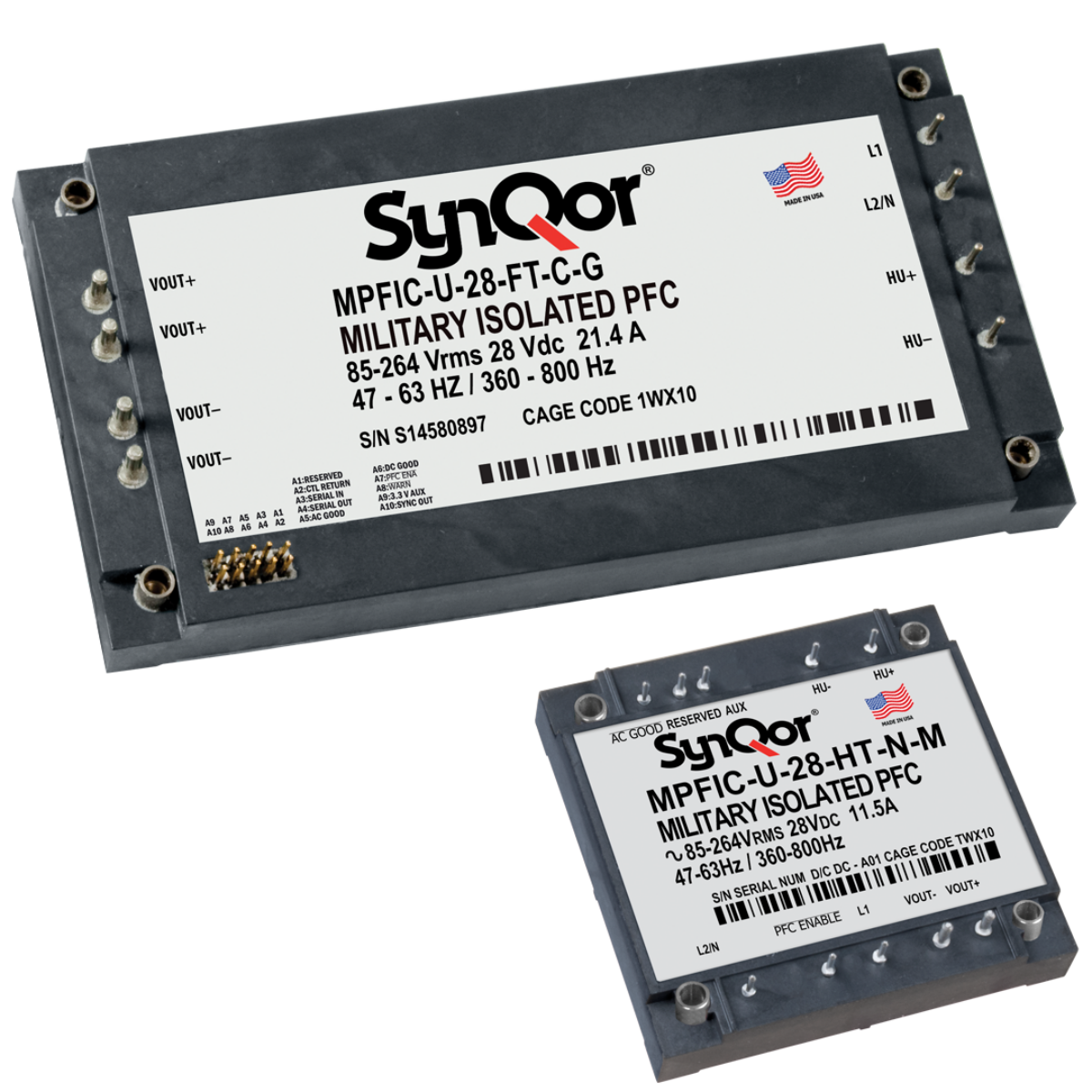

The MPFICQor Power Factor Correction module is a high power, high efficiency AC-DC converter. It operates from a universal AC input and generates an isolated output. Both regulated and semi-regulated (droop version) modules are available. Used in conjunction with a hold-up capacitor, and SynQor’s MCOTS AC line filter, the MPFICQor will draw a nearly perfect sinusoidal current (PF>0.99) from a single phase AC input. The module is supplied completely encased to provide protection from the harsh environments seen in many military and aerospace environments.

Operational Features

Isolated output, 325 W, 600 W & 800 W
Universal input frequency range: 47 – 63 Hz / 360 – 800 Hz
Input voltage range: 85-264 Vrms
≥0.99 Power Factor
Internal inrush current control. Full-brick model has enhanced control that keeps inrush current to nearly zero
Auxiliary bias supply
Can be paralleled (droop version only)
Compatible with SynQor’s MCOTS AC line filters
Hold-up available on 600 W FG model only

Control Features

PFC Enable
AC and DC Power Good outputs
Input current limit and auto-recovery short circuit protection
Auto-recovery input under / over-voltage protection
Auto-recovery output over-voltage protection
Auto-recovery thermal shutdown
Battle Short – (Full-bricks only)
Asynchronous serial data interface (Full-bricks only)
