Product Details
The MPFICQor Military Isolated PFC Module is a high power, high efficiency AC-DC converter. It operates from a 115 Vrms AC input and generates an isolated DC output. Both regulated output and droop output modules are available. Used in conjunction with a holdup capacitor, and SynQor’s MCOTS AC line filter, the MPFICQor will draw a nearly perfect sinusoidal current (PF>0.99) from a 3-Phase AC input. The module is supplied completely encased to provide protection from the harsh environments seen in many military and aerospace environments.
Operational Features
- Compatible with Military Standard 60 Hz, 400 Hz and variable frequency systems
- Harmonic content meets military standards
- Superior load current rejection, enabling systems with repetitive load CE101 requirement by offering superior load current rejection
- Minimal inrush current
- Balanced phase currents
- High power factor (0.99 at 400 Hz / 750 W)
- Minimal external output capacitance requirement
- Full load current during startup
- Ability to meet full EMI with available additional EMI filters
- N * 750 W power levels when paralleled
Control Features
- All control pins referenced to separate floating return
- Asynchronous serial data interface
- AC and DC Power Good outputs
- PFC Enable and Battle Short inputs
- 3.3 V always-on standby power output
- Clock synchronization output

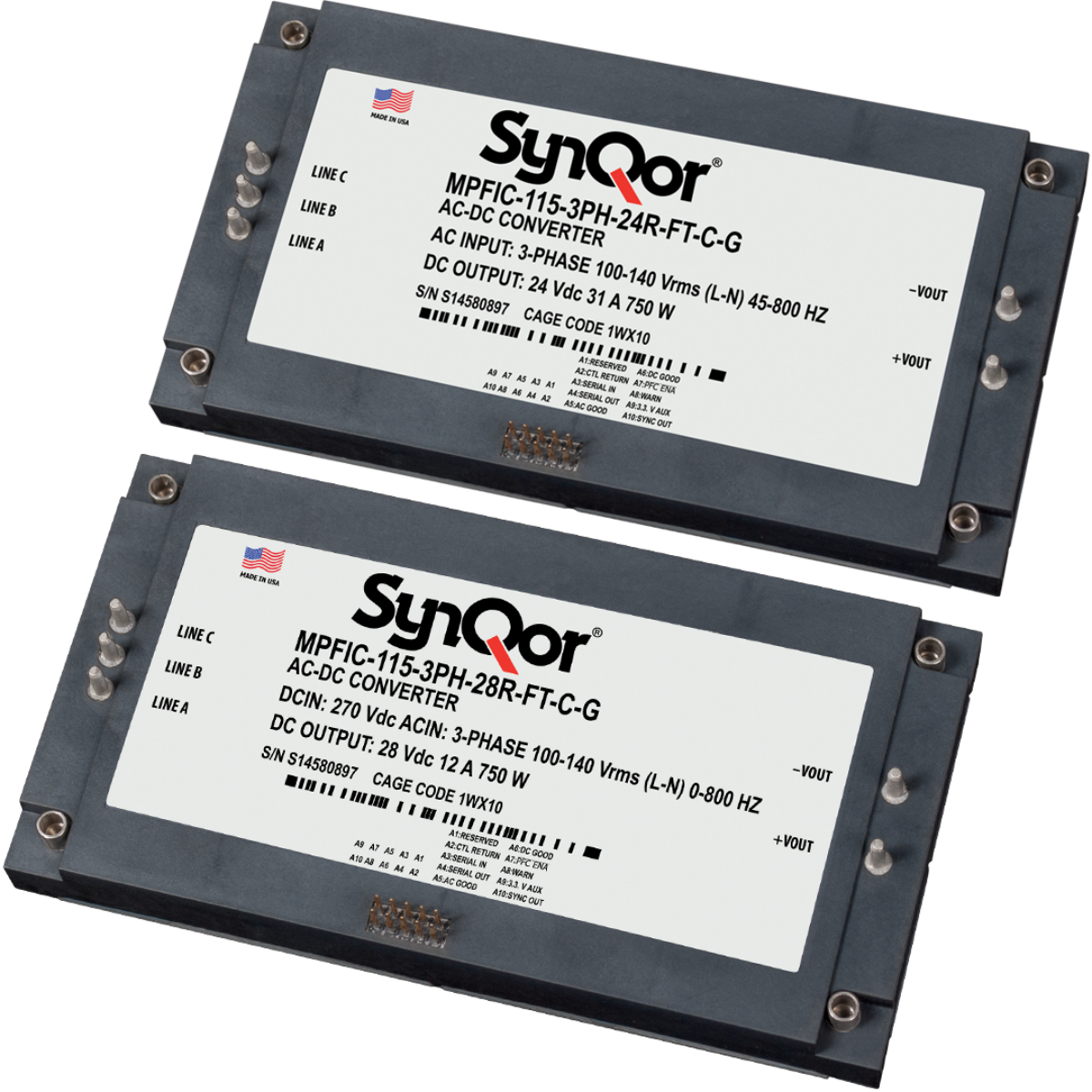

MPFICQor Family - 3-Phase
*115 V
Continuous Input
-
Transient Input
Up to 92%
Efficiency
-55 - +100 ºC
Operating Temp
