Product Details
The MPFCQor Power Factor Correction module is an essential building block of an AC-DC power supply. Used in conjunction with a hold-up capacitor, SynQor’s high efficiency MCOTS DC-DC converters and SynQor’s MCOTS AC line filter, the MPFCQor will draw a nearly perfect sinusoidal current (PF>0.99) from a single phase AC input. The MPFCQor module can be paralleled to achieve higher power. The module is supplied completely encased to provide protection from the harsh conditions seen in many military and extreme environments.
Operational Features
- Universal input frequency range: 47 – 63 Hz / 360 – 800 Hz
- Up to 700 W output power
- ≥0.99 Power Factor
- Internal inrush current limit
- Auxiliary 10 V bias supply
- 100 °C max baseplate temperature at full power
- Can be paralleled with current sharing
- Compatible with SynQor’s MCOTS DC-DC Converters and SynQor’s AC to DC MCOTS AC line filters
Control Features
- PFC Enable
- Load Enable (also: Power Out Good signal)
- AC Power Good Signal (Half-Brick Only)
- Clock synchronization (Half-Brick Only)
- Output current monitor / current sharing (Half-Brick Only)
- Input current limit and auto-recovery short circuit protection
- Auto-recovery input under / over-voltage protection
- Auto-recovery output over-voltage protection
- Auto-recovery thermal shutdown

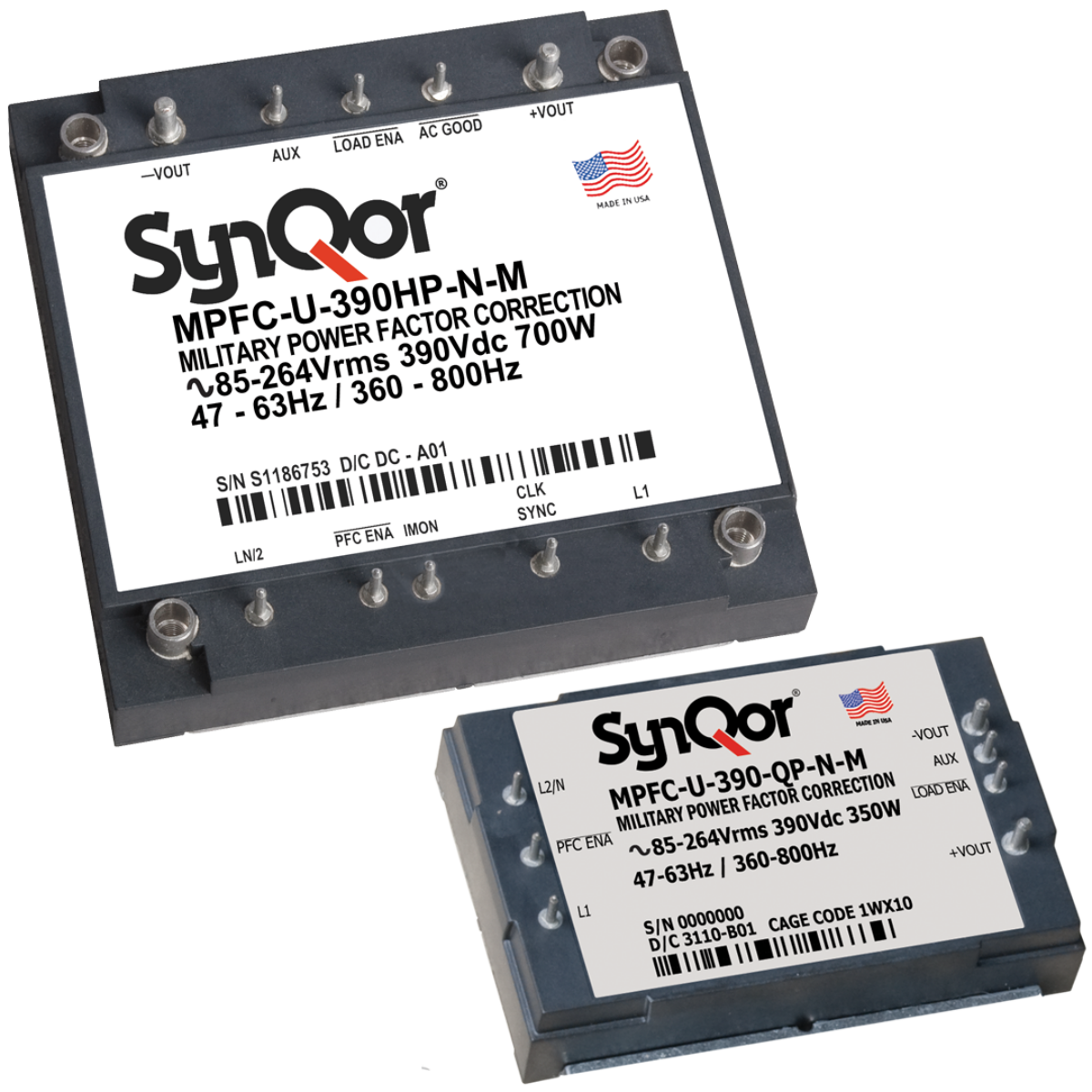

MPFCQor Family - Single Phase
115 / 230 V
Continuous Input
-
Transient Input
Up to 95%
Efficiency
-55 - +100 ºC
Operating Temp
