Product Details
SynQor’s Military Field-Grade Power Conditioner units are designed for the extreme environmental and demanding electrical conditions of Military/Aerospace applications. SynQor’s MPC incorporates field proven high efficiency designs and rugged packaging technologies. This MPC will accept a wide range of input voltage and frequency values while delivering a well conditioned AC or DC output to the load. It is designed and manufactured in SynQor’s USA facilities to comply with a wide range of military standards.
Operational Features
- Sealed, weather-proof, shock-proof construction
- Universal AC input: 80-265 VAC; 47-65 Hz (see options)
- Power factor correction at AC input
- Dual input (AC and DC)
- True on-line double conversion
- User I/O, Ethernet and Configuration signal ports
Specification Compliance Features
- MIL-STD-704F – Aircraft Electrical Power Characteristics
- MIL-STD-1399-300B – Interface Std for Shipboard Systems
- MIL-STD-1275D – Vehicle Electrical Power Characteristics
- MIL-STD-461F – Electromagnetic Interference
- MIL-STD-810G – Environmental Engineering Considerations

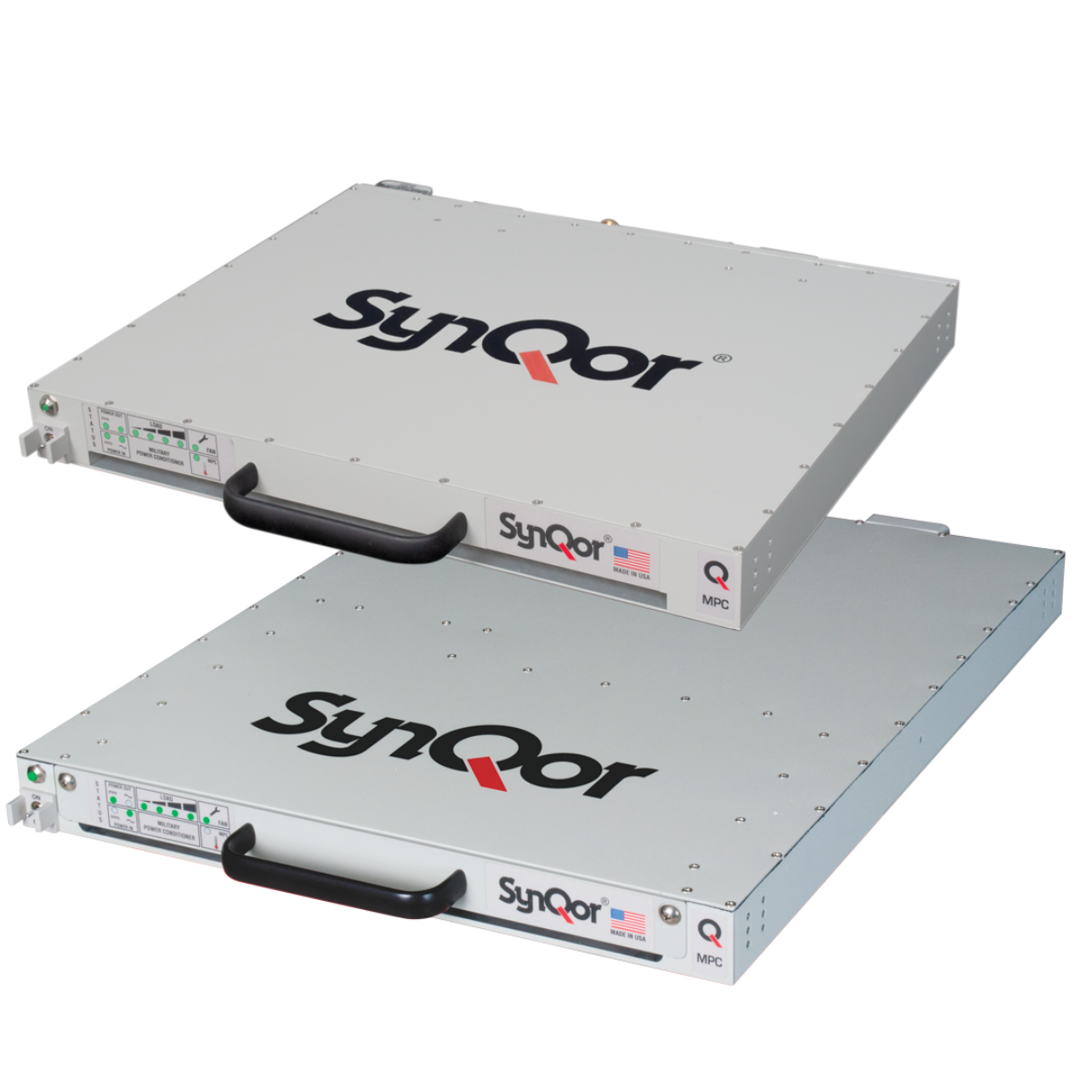

MPC Family
-40 - +55 ºC
Operating Temp
