Product Details
SynQor’s Military Inverter units are designed for the extreme environmental and demanding electrical conditions of Military/Aerospace applications. SynQor’s MINV incorporates field proven high efficiency designs and rugged packaging technologies. This MINV will accept a wide range of steady-state and transient DC input voltage values while delivering a well-conditioned AC output to the load. Options include a selection of output voltage amplitudes, frequencies, and an electronic breaker on the AC output to permit fault-tolerant parallel operation for higher power and/or N+M redundant systems.
Operational Features
- Sealed, weather-proof, shock-proof construction
- 4000 W (5000 VA) output power
- 28 V DC Input & 270 V DC Input
- Pure sinusoidal AC output voltage
- Handles 0.0 – 1.0 power factor loads and non-linear loads
- Up to 32 units can be combined for higher power, voltage or a 3-Phase AC output
- Up to 32 units can be combined to form a higher power fault-tolerant, glitch-free system, perhaps with N+M redundancy, by ordering with the “AC Output Electronic Breaker” option and the appropriate configuration cable
- Battle Mode for over-temperature events
- User I/O, Ethernet and Configuration signal ports
Specification Compliance Features
- MIL-STD-704F – Aircraft Electrical Power Characteristics
- MIL-STD-1399-300B – Interface Std for Shipboard Systems
- MIL-STD-1275D – Vehicle Electrical Power Characteristics
- MIL-STD-461F – Electromagnetic Interference
- MIL-STD-810G – Environmental Engineering Considerations

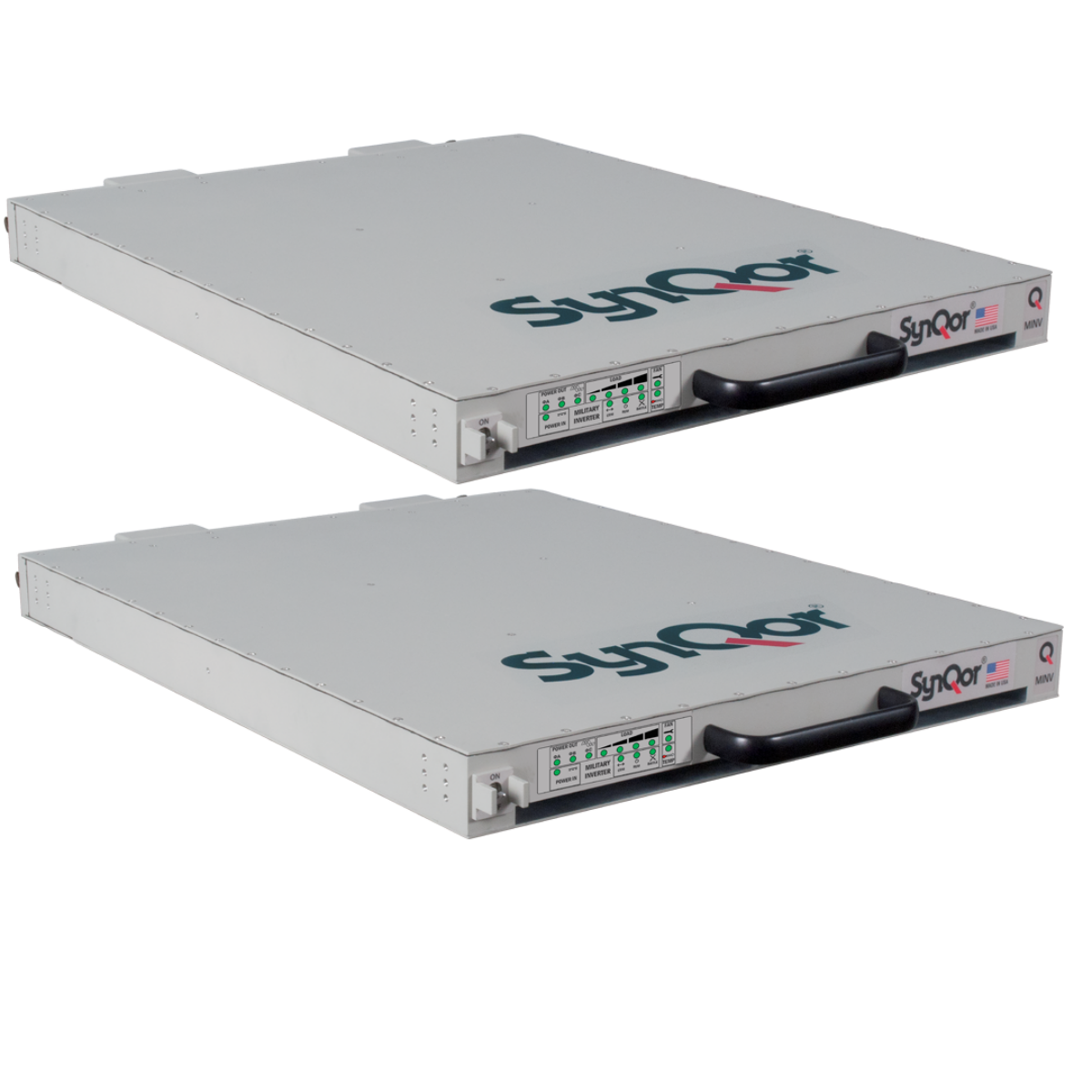

MINV Family
Up to 91%
Efficiency
-40 - +55 ºC
Operating Temp
