Product Details
These Military bus converters are the next-generation, board-mountable, isolated, fixed switching frequency DC-DC converters that use synchronous rectification to achieve extremely high conversion efficiency. MCOTS Bus converters are ideal for creating the mid-bus voltage required to drive point-of-load (non-isolated) converters in Intermediate Bus Architectures.
Operational Features
- Delivers up to 65 A @ full power with minimal derating
- Fixed frequency switching provides predictable EMI
- No minimum load requirement
- Industry standard half-brick pin-out configuration
Control Features
- Input under-voltage and over voltage lockout protects against abnormal input voltages
- Output current limit and short circuit protection (auto recovery)
- Thermal shutdown
- On/Off control referenced to input side
- Inherent current share (by droop method) for high current and parallel applications
- Clock synchronization (primary reference)

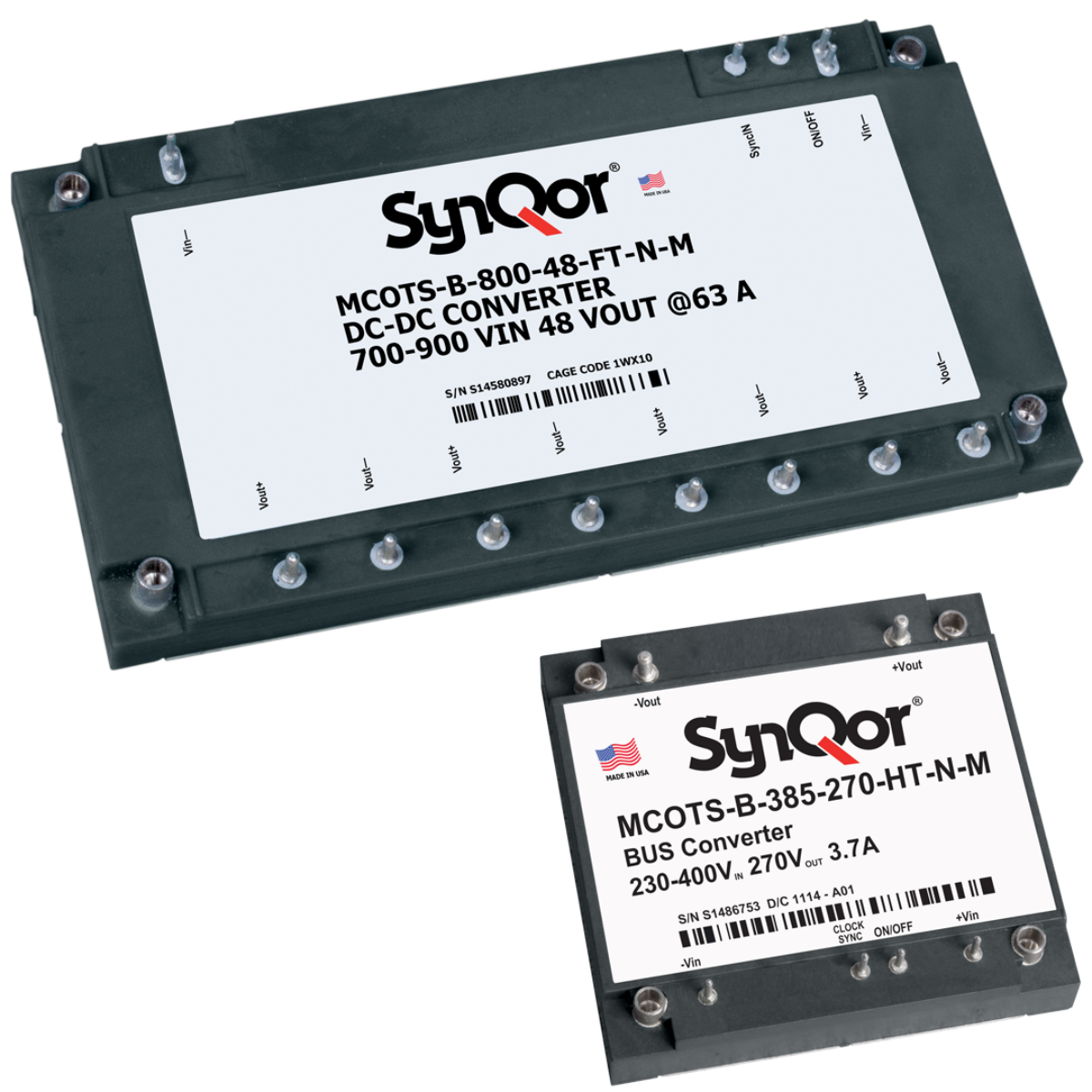

Mil-COTS Bus Converter Family
Varies by Converter
Continuous Input
Varies by Converter
Transient Input
Up to 97%
Efficiency
-55 - +100 ºC
Operating Temp
