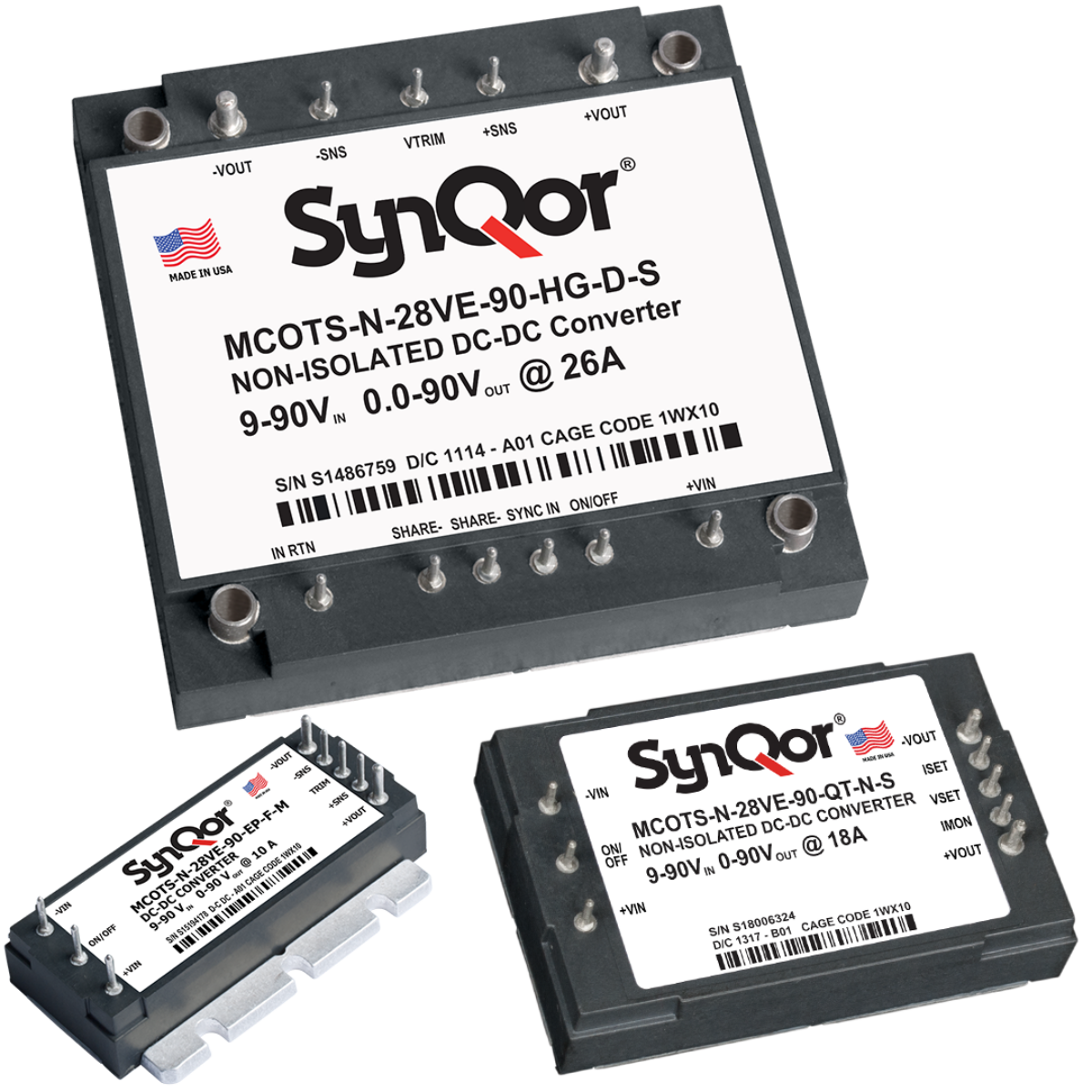

Military Non-isolated DC-DC Converters - Extended Range

See all products in this series

Product Details

The high input voltage non-isolated DC-DC converters offer unique solutions for converting high-powered, variable voltages to a wide range of output voltages. The converter is a non-isolated buck-boost regulator, which employs synchronous rectification to achieve extremely high conversion efficiency. These products are suitable for use in Intermediate Bus Architectures, or to provide a regulated output voltage from a variable voltage source such as a battery. They can be configured to ‘buck’ the input voltage down or ‘boost’ the input voltage up with a single external setpoint resistor.

Battery Charging:

Provides the power conversion platform for battery charging
Output current limit is externally controlled for constant-current charging
Current can be set with an external resistor or an active circuit
Current analog signal provided for instrumentation and control functions
Ideal diode output stage with zero back-drive currents prevents discharge of battery when not charging
Output voltage set-point is independently controlled through trim pin
Unit will smoothly transition between current and voltage modes as charging cycle needs charge

Operational Features

Buck/Boost Mode available
Maximum input/output currents up to 40 A
Suitable for use in Intermediate Bus Architectures
On-board input and output filtering
No minimum load requirement
Remote sense and wide output voltage trim (Half-brick only)

Control Features

Input under-voltage lockout (UVLO)
Output current limit (OCP) and short circuit protection
Output over-voltage protection (OVP)
Thermal shutdown (OTP)
Output voltage trim
