Product Details
The MilQor ® series of Mil-COTS Isolated DC-DC converters brings SynQor’s field proven high-efficiency synchronous rectifier technology to the Military/Aerospace industry. These “off-the-shelf” converters are compatible with the industry standard format, operate at a fixed frequency, and follow conservative component derating guidelines. MilQor products are designed and manufactured to comply with a wide range of military standards.
Operational Features
- Fixed frequency switching provides predictable EMI
- No minimum load requirement
- Rugged design for harsh environments
- Full Feature option on some models
- Flanged baseplate available
- Industry standard pin-out configurations and standard footprints.
- High-capacitance option for very large output capacitance and extreme transient applications available
Specification Compliance Features
Mil-COTS converters with Mil-COTS filters are designed to meet:
- MIL-HDBK-704
- RTCA/DO-160 Section 16, 17, 18
- MIL-STD-1275
- MIL-STD-461
- DEF-STAN 61-5 (part 6)/(5, 6)
Control Features
- Input under-voltage lockout
- Output current limit and short circuit protection
- Active back bias limit
- Output over-voltage protection
- Thermal shutdown
- On/Off control referenced to input side (Fully isolated Full Bricks)
- Remote sense for the output voltage
- Digital Output Current Sharing
- Output voltage trim range of: +10% to -20%

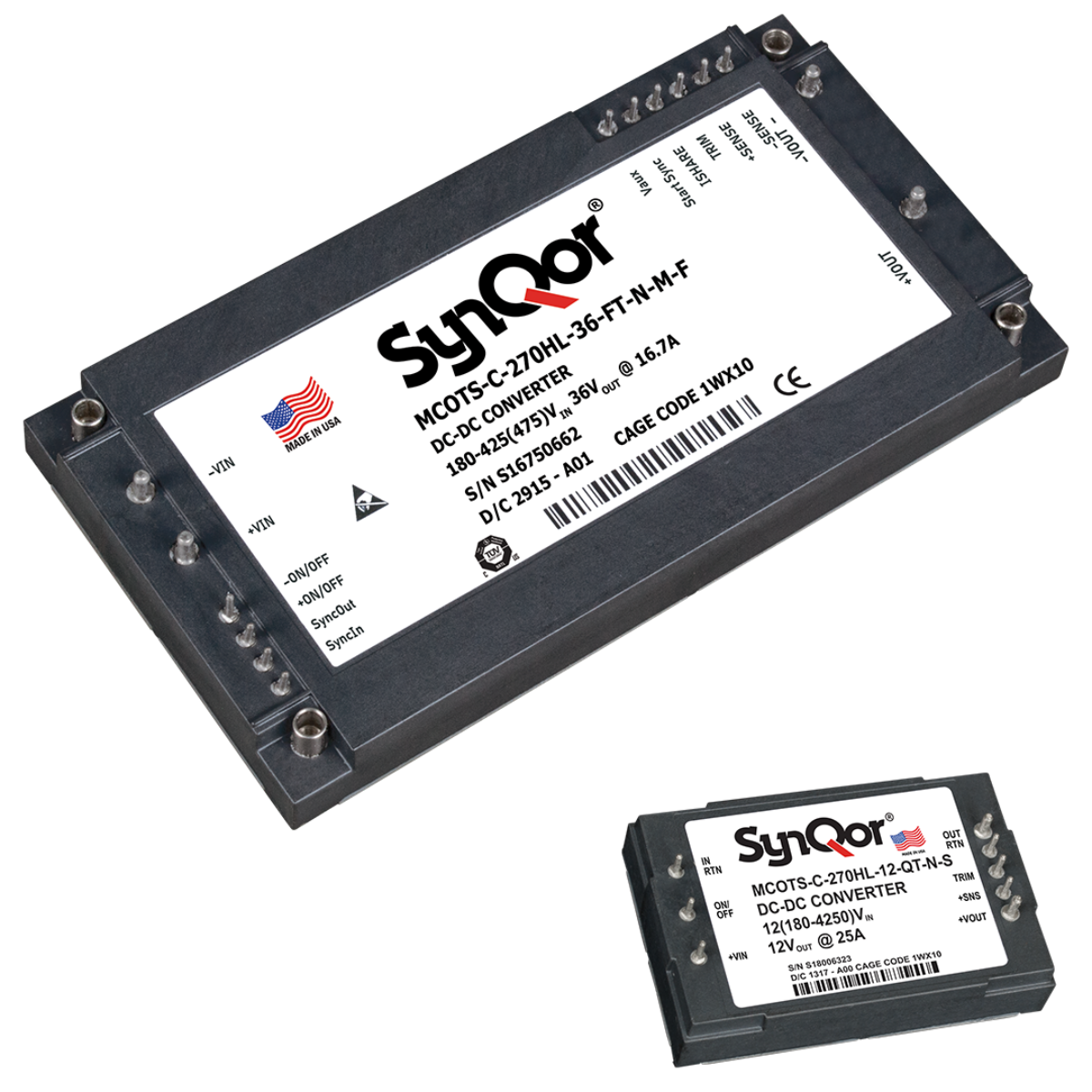

Mil-COTS 270HL Family
180 - 425 V
Continuous Input
180 - 475 V
Transient Input
Up to 95%
Efficiency
-55 - +100 ºC
Operating Temp
