Product Details
SynQor’s ruggedized InQor DC-DC converters and filters are designed for a wide range of industrial applications including those required to withstand harsh environments: railway and transportation systems, industrial motion control, information displays, factory automation and power generation systems. SynQor converters feature a two-stage power topology with synchronous-rectification that greatly improves efficiency and optimizes the power dissipated by the converter.
Operational Features
- Fixed frequency switching, low output noise
- No minimum load requirement
- Full Feature options available on some models
- Industry standard pin-out configurations and standard footprints
- Output Voltage Set Point: ±1.0%
- Output Voltage Ripple: <1% of Vout (typ.) pk-pk
- Isolation Voltage: Up to 4250 Vdc
Control Features
- Input under-voltage lockout
- Output current limit and short circuit protection
- Active back bias limit prevents damage to converter from external load induced pre-bias
- Output over-voltage protection
- Thermal shutdown
- Trimmable output voltages

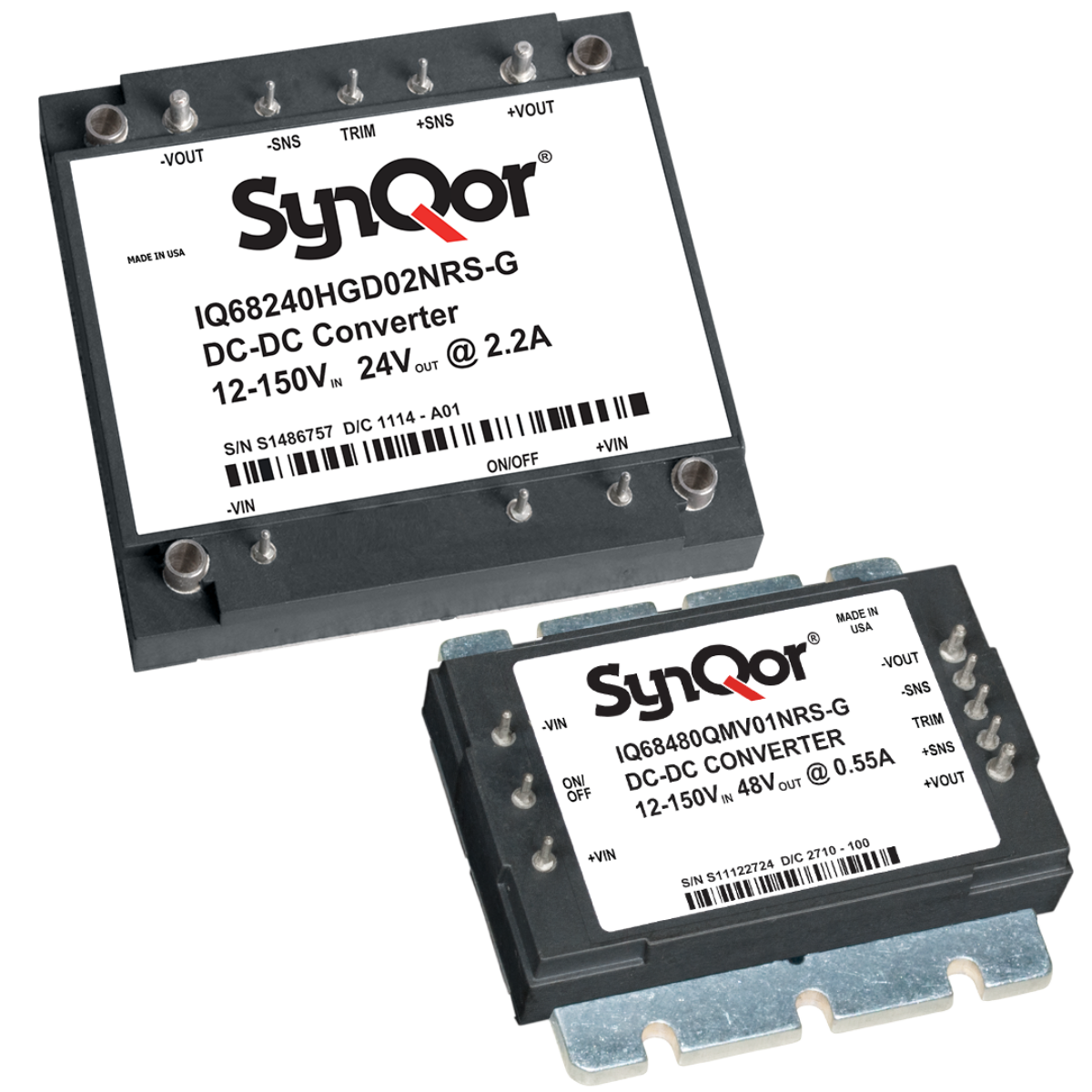

IQ68 Family
12 - 150 V
Continuous Input
12 - 170 V
Transient Input
Up to 95%
Efficiency
-40 - +100 ºC
Operating Temp
