Product Details
The AeroQor® Isolated PFC Module is a high efficiency, active PFC, AC-DC converter designed to be used as a COTS Component in airborne applications. It operates from a 115 Vrms AC input and generates an isolated DC output. Regulated output and droop output modules are available. Used in conjunction with a holdup capacitor, and SynQor’s AC line filter, the AeroQor module will draw a nearly perfect sinusoidal current (PF>0.99) from a 3-Phase AC input. The module is supplied completely encased to provide protection from the harsh environments seen in many industrial areas.
Operational Features
- Compatible with commercial aircraft 60 Hz, 400 Hz and variable frequency systems
- Harmonic content meets commercial aircraft standards
- Minimal inrush current
- Balanced phase currents
- High power factor (0.99 at 400 Hz / 750 W)
- Minimal external output capacitance requirement
- Full load current during startup
- Ability to meet full EMI with available additional EMI filters
- N * 750 W power levels when paralleled
- 100 °C max baseplate temperature at full power
Specification Compliance Features
- RTCA/DO-160
- Airbus ABD0100.1.8
- Boeing 787B3-0147
- Boeing D6-36440
- Boeing D6-44588
- CE marked
Control Features
- All control pins referenced to separate floating return
- Asynchronous serial data interface
- AC and DC Power Good outputs
- PFC Enable input
- 3.3 V always-on standby power output
- Clock synchronization output
- Output current limit and auto-recovery short circuit protection
- Auto-recovery input under / over-voltage protection
- Auto-recovery output over-voltage protection
- Auto-recovery thermal shutdown

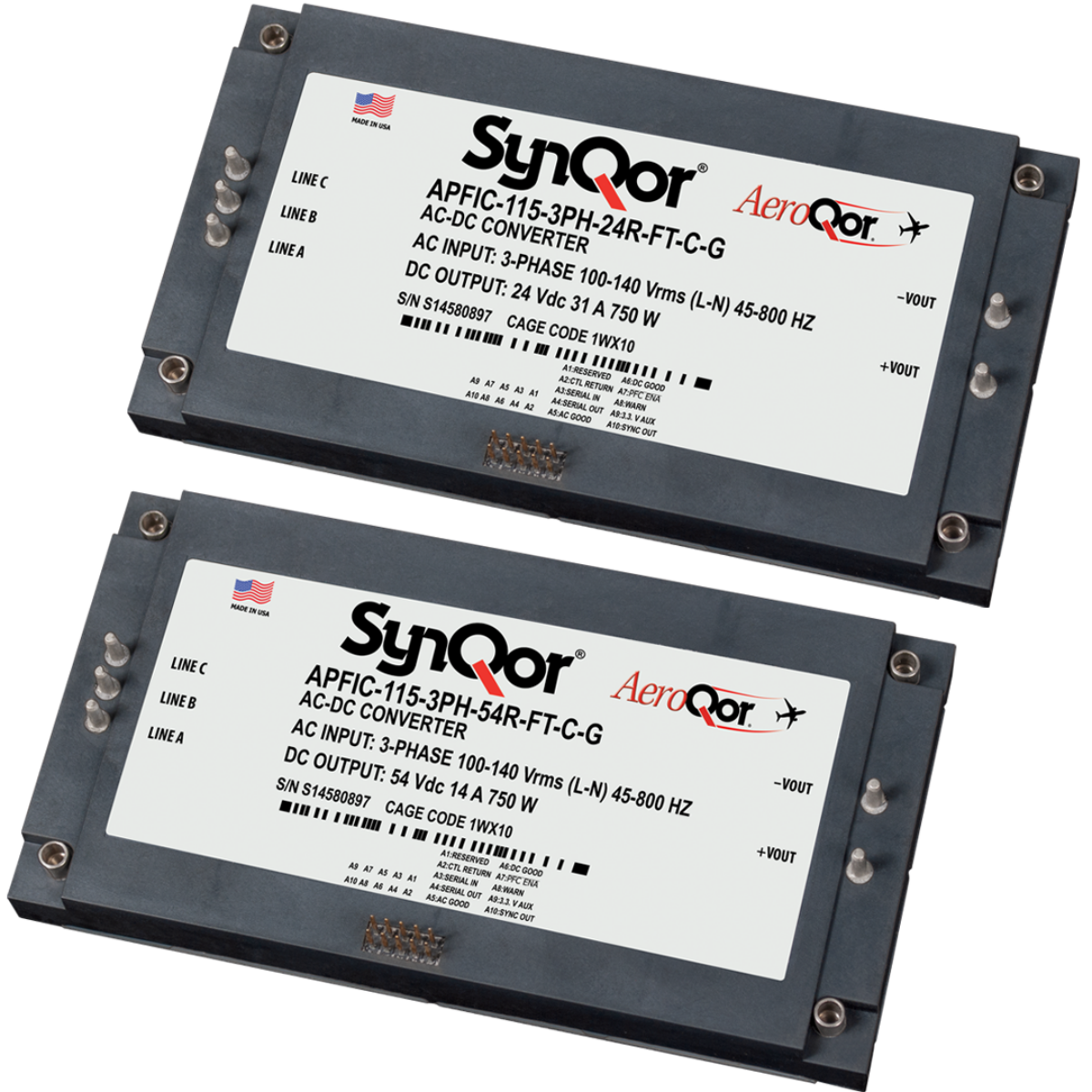

3-Phase AeroQor Family
115 / 230 V
Continuous Input
-
Transient Input
Up to 92%
Efficiency
-40 - +100 ºC
Operating Temp
