Military-Grade Isolated AC-DC Power Supply

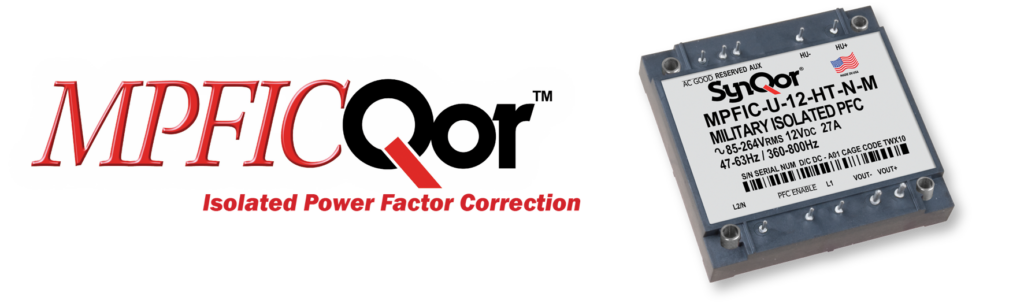

SynQor’s MPFICQor Power Factor Correction module is a high power density, high efficiency, isolated AC to DC power converter. The MPFICQor module is offered as either a single phase or 3 phase power converter. The single-phase version operates from a universal AC input range while the 3-phase version operates from 85-140 Vrms L-N 3 phase power source. Both regulated and semi-regulated (droop version) modules are available. Used in conjunction with a hold-up capacitor, and SynQor’s MCOTS AC line filter, the MPFICQor AC to DC module will draw a nearly perfect sinusoidal current (power factor greater than 0.99) from either a single phase or 3 phase AC input depending on the module and generate a well-conditioned, isolated output. The unit is supplied completely encased to provide protection from the harsh environments seen in many military and aerospace environments.
Product Features
Isolated 3-Phase AC-DC Converters
- Industry standard full-brick package
- Input voltage range: 3-phase 85-140 Vrms L-N
- Isolated Output power: up to 750 W
- Isolated Outputs: 12 Vdc, 24 Vdc, 28 Vdc, 48 Vdc, 54 Vdc
- High Power Factor: up to 0.99
- High efficiency: convert AC to DC power with up to to 94% efficiency
- Compatible with military standard 60Hz, 400Hz and variable frequency systems
- -55 °C to +100 °C Operating Temperature
- Can be paralleled to achieve higher power ratings (droop versions only)
- Compliant with MIL-STD-704, MIL-STD-461, and other military standards (See datasheets)
- Fully encased and ruggedized to protect from harsh environments
Isolated Single Phase AC-DC Converters
- Industry standard half-brick and full-brick package sizes
- Universal input voltage range: 85-264Vrms
- Universal input frequency range: 47 – 63Hz / 360 – 800Hz
- Isolated PFC: Up to 800W output power
- High Power Factor: ≥0.99
- High efficiency: convert AC to DC power with up to 95% efficiency
- -55 °C to +100 °C Operating Temperature
- Can be paralleled to achieve higher power ratings (droop versions only)
- Compliant with MIL-STD-704, MIL-STD-1399, and other military standards (see datasheets)
- Fully encased and ruggedized to protect from harsh environments
